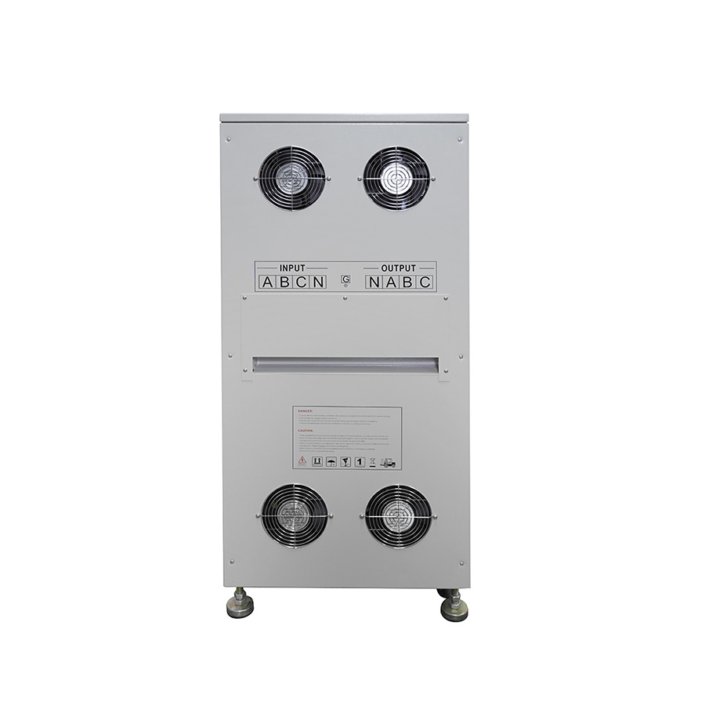

IGBT Three Phase Static Voltage Stabilizer
Voltage fluctuations are very common in the isolated and remote areas, the main purpose of a voltage stabilizer is to regulate the output voltage that feeds the load equipment connected to it be equivalent to the ideal power supply, all electric equipment requires a power supply which is maintained within certain limits. Too lower and too higher voltgage fluctuations from utility power supply, results in the load equipment’s malfunction and could be damaged in a lng run, DOER DSVS series PWM IGBT Static Voltage Stabilizer is the best generation of stabilizer to handle with.
with an experience of more than 13 years in the industry, our IGBT static voltage stabilizer can deliver a desirable voltage value to meet various application demands in voltage accuracy of +/-1% to optimal of 0.5%. DOER DSVS series IGBT static voltage stabilizer are designed and manufactured with new technology and quality components to prevent all types of your electrical appliances from voltage fluctuations.
- PWM controlled IGBT technology
- applicable to wide supply voltage variations of in excess of ±25% or even greather than 30% and 40%
- delivering voltage accuracy on the output of 1% to optimal 0.5%
- free maintenance
- High dynamic response: 10ms
- correction Time: 20ms-30ms
- stepless auto voltage regulation
- surge arrestor: Class II4P 40KA, to protect loads against high spikes and transient voltage
- independent phase control
- Buit-in Auto Bypass: has an internal bypass system that ensures load to the mains utility in case of overload or stabilizer in malfunction
- Manual Maintenance Bypass Switch where requested can be fitted.
General Specification Datasheet of 3 Phase IGBT Static Voltage Stabilizer
| MODEL NOS. | DSVS-V*-XS15/S20/M25/L30 |
|---|---|
| - Phase: | 3 Phase 4 Wire (3P+N+GE) |
| - Power Capacity: | 21 Model Ratings: 10kVA,15kVA,20kVA,30kVA,45kVA,60kVA,75kVA,100kVA,120kVA,150kVA,200kVA,300kVA,400kVA,500kVA,600kVA,800kVA,1000kVA,1250kVA,1500kVA,1600kVA,1800kVA & 2000kVA |
| - Topology: | PWM IGBT based Static Stabilizer |
| INPUT | |
| - Nominal Voltage Ratings Three Phase: | A series 380V, B series 400V, C series 415V, D series 440V & E series 480V *Select one voltage value* |
| - Voltage Variation Swing Options: | XS15:Nominal Volt.±15%, S20:Nominal Volt.±20%, M25:Nominal Volt.-30,+20%, L30:Nominal Volt.-40%,+20% |
| - Frequency: | Nominal 50Hz±5 (60Hz Optional) |
| OUTPUT | |
| -Voltage: | A series 380V±1%, B series 400V±1%, C series 415V±1%, D series 440V±1% & E series 480V±1% |
| -Voltage Accuracy: | default ±1%, optimal to 0.5% |
| - Frequency: | 50Hz/60Hz±5 |
| - Response Time: | 10ms |
| - Correction Time: | 20ms-30ms |
| - Front Panel Display: | LCD Digital Display: Input Voltage & Output Voltage, Amperes, Frequency, Power meters,Date/Time |
| - Output Waveform Distortion: | Nil |
| - Efficiency: | ≥98% |
| - Overload Capacity: | 110% 30mins, 125% 10mins, 150% 1min, 250% 250ms, 300% immediate trip |
| - Surge Protecion : | Class II, 4P 40KA |
| - Output Time Delay: | Stabilize voltage before output to protect equipment from high or low voltage surges |
| - Circuit Breaker: | Input circuit breaker & output contactor |
| -Auto Bypass: | an internal bypass system built in stabilizer to ensure load to the mains utility in case of overload or stabilizer in malfunction |
| -Manual Maintenance Bypass Switch: | Optional, practiced when undertaking maintenance on Stabilizer |
| -Protection： | Over/Low Voltage Protection,Overload Protection,Phase Loss Protection |
| - Ingress Protection: | IP20 (Indoor) |
| -Relative Humidity: | 0-95% (non-condensing) |
| -Working Temp.: | -10℃ - 45℃ |
| -Warranty: | 2 Years / 24 Months from date of supply |
| -Certificate: | CE. Reference Standards EN60204, EN61000 |
| -IP Ratings: | Enclosures to IP20 (NEMA 1 Style), IP54 Enclosures available as optional. |
- isolation transformer: providing extra protection between Mains electricity and the load
- IP 54 Ingress Protection – NEMA 3 – adaptable to external use, or more harsh environments.
- output Contactor comes as standard on all models, Output Circuit Breaker supplied as an alternative to the Output Contactor
- communication Interface: RS485/RS232, Mudbus Protocol
- Stabilizers are also available offering Step up or Step down voltage conversion. For example, Step down: Three phase 415V(L-L) / 240V (L-N)to 208V(L-L) /120V(L-N) or Step-Up voltage conversion – 208(L-L) /120V(L-N) to 415V(L-L) / 240V (L-N).
- other permissible input voltage range and output voltage values available to special request.
