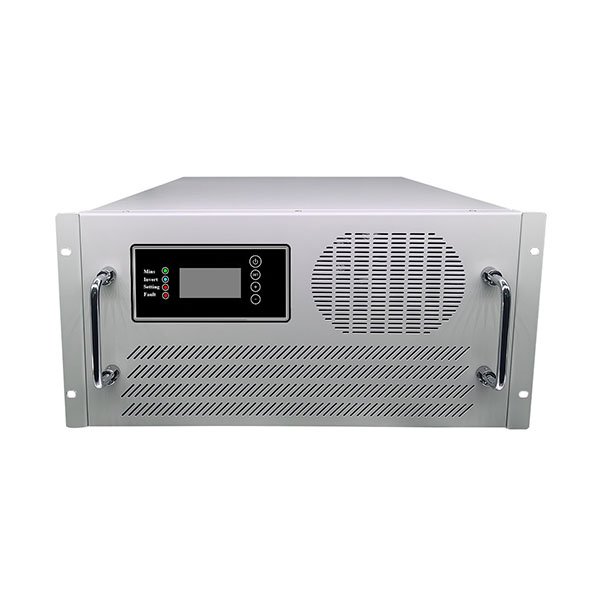

Low-frequency DC to AC Inverter
The DDPN series DC to AC pure sine wave inverter is specifically designed for the practical needs of power systems for commercial and industrial, is suitable as backup for emergency in communication systems or power systems with DC incoming voltages of DC24V, DC48V, DC110V, and DC220V, its versatile and stable performance well integrated In communication power systems.
The DDPN series inverter is one perfect unit to supply pure sine wave ac power (THD≤3%), specifically designed for higher power rating loads. Its core function is to convert commonly used 24V,48V,110V DC and 220VDC power to 110V,220V,230V, 50Hz/60Hz AC power.
- Suitable for high horse power and high stability demand scenarios, such as: Industrial equipment like machine tools, motors, precision instruments for medical equipment.
- Equipment such as RVs and ships that require carrying large inductive loads such as air conditioning and refrigerators.
- In places with strict electrical isolation and safety requirements like humid environments.

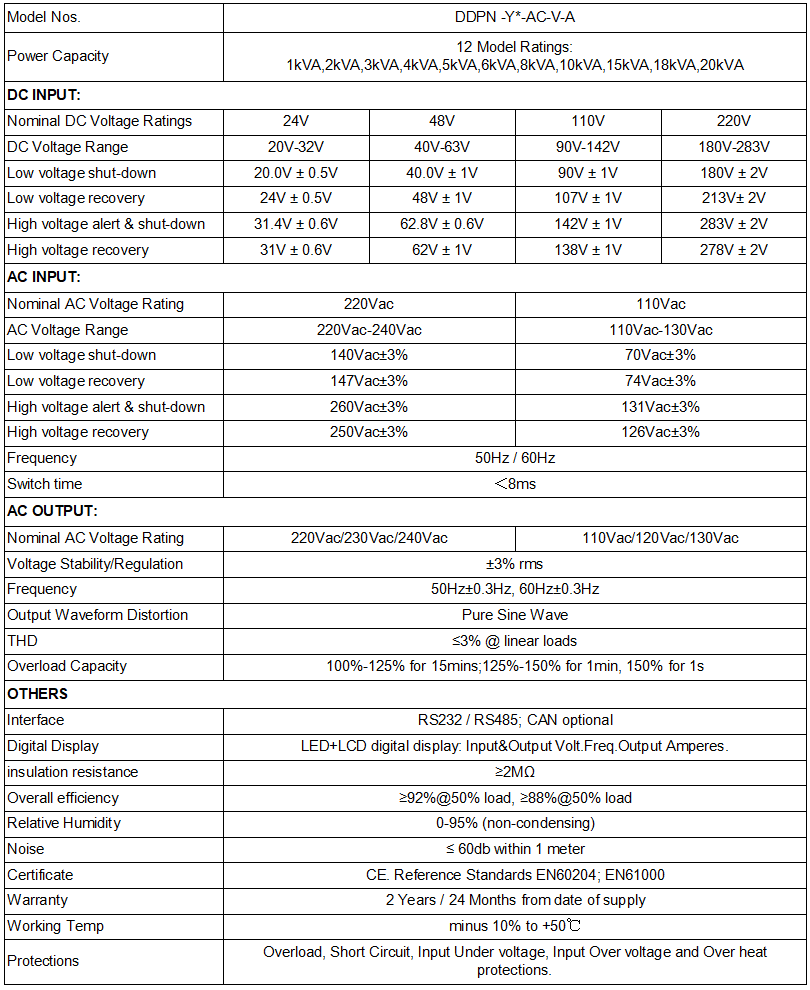

General Specification of Low-frequency DC to AC Inverter

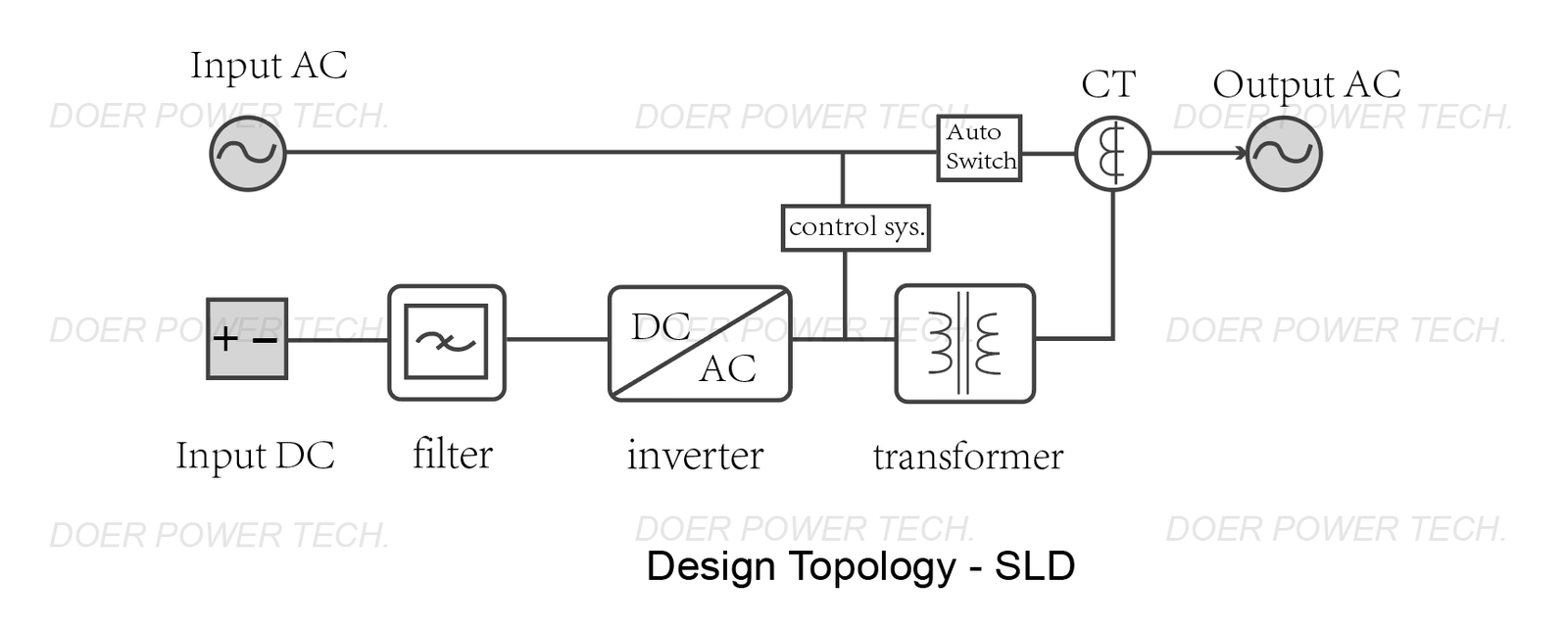

Low-frequency DC to AC Inverter Principle Block Diagram
The DDPN DC to AC inverter receives a DC input voltage from a battery or any other DC sources. DC power is converted into high-frequency AC power through an inverter bridge, and then stepped up/down and rectified into 50Hz/60Hz AC power through a low-frequency transformer.

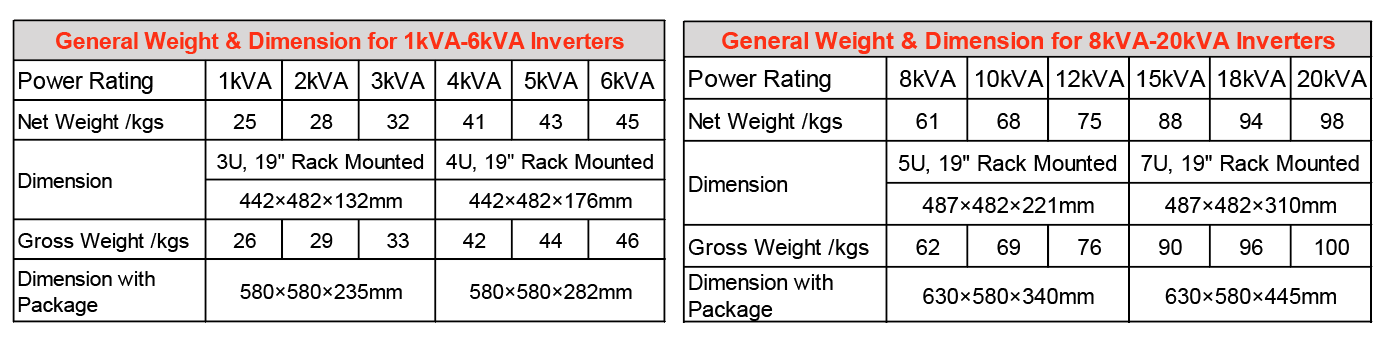

Weight & Overall Dimension
