Choosing one right DC Power Source for aircraft daily maintenance and engine start is mandatory, power reliability isn’t just a convenience—it’s a safety imperative. Whether you’re starting a turbine engine on a jet or performing routine maintenance on a helicopter, owning the right DC power source at the right moment is a must.
The 48kW Dual-Mode DC Rectifier—a DC power source designed specifically for aircraft engine start and maintenance applications. With its unique ability to deliver both 24V/48V switchable output and 28.5V DC in a single unit, this is the most versatile GPU on the market today.
Why Specialized Solutions of DC Rectifier Matters?
Aircraft electrical systems operate on standardized DC voltages, most commonly 28.5V DC for modern turbine-powered aircraft and helicopters. Sustained power delivery for maintenance and pre-flight checks.
Traditional ground power units 28.5v dc rectifier provides only 28.5v dc power but lack the versatility to support different aircraft types. The 48kW Dual-Mode DC Rectifier solves the challenges in one integrated unit.
Introducing the 48kW Dual-Mode DC Rectifier
This system is a 48kW DC power supply engineered specifically for aviation equipment support. With a starting current of 1500-2400 Amps and peak surge capability, it delivers the instantaneous power required to start turbine engines reliably.
Two Operating Modes – One Versatile Unit
What sets this rectifier apart is its dual-mode architecture:
Mode 1: 28.5V DC Continuous Power
- Delivers 28.5V DC at 600A to 800A continuous output;
- Ideal for daily aircraft servicing, avionics testing, and pre-flight preparations;
- Provides lower ripple DC, regulated power for onboard electrical equipment.
Mode 2: 24V/48V Switchable Engine Start Mode
- Instantaneous conversion for engine start cycles;
- Two 24V outputs can be connected in series to form 48V DC;
- Configurable for different aircraft starting requirements.
This dual-mode flexibility means a single unit can serve multiple aircraft types—from small helicopters to regional jets—without requiring separate power sources.
Technical Specifications That Deliver Performance:
| Parameter | Specification |
|---|---|
| Rated Power | 48kW |
| Output Modes | 28.5V DC / 24V-48V switchable |
| Rated Current | 600A – 1000A |
| Peak Starting Current | 1500A for 30 seconds, 2400A 1s |
| Starting Configuration | Instantaneous 24V to 48V conversion |
| Application | Aircraft engine start & maintenance |
The peak current capability of 1500A for 30 seconds is critical for turbine engine starts. During engine ignition, the starter motor draws inrush current to the rectifier. The rectifier is built with soft start to deal with Instantaneous high current surge and voltage sag.
Versatility in Action: Real-World Applications
1. Small Aircraft & Helicopter Maintenance
For general aviation and helicopter operators, the 28.5V mode at 600-800A provides all the power needed for:
- Engine starting
- Pre-flight system checks
- Avionics testing
- Battery charging and maintenance
- Continuous power for ground air conditioning and cabin systems
The ability to switch between 24V and 48V configurations makes this unit equally suitable for both older 24V electrical systems and newer 28V standards.
2. Aircraft Maintenance, Repair & Overhaul (MRO) Facilities
MRO facilities servicing multiple aircraft types need flexibility. This rectifier delivers:
- Dual-output capability for simultaneous servicing
- Clean, filtered DC power with low ripple for sensitive electronics
- Soft-start functionality to protect aircraft starters from over-torquing
The 24V/48V Series Connection Advantage
One of the most innovative features of this rectifier is its ability to connect two 24V outputs in series to create a 48V DC source. This is particularly valuable for:
- Aircraft with 48V starting systems – common on certain helicopter models;
- Dual-voltage aircraft – where both 24V and 48V systems coexist;
- Future-proofing – as aviation moves toward higher-voltage architectures, e.g. 48V,270V and 540VDC
The series connection is instantaneous, requiring no external transformers or adapters. Simply reconfigure the output connection, and the rectifier adapts to the aircraft’s requirement.
Designed and Built for the Aviation Application
Aviation ground support equipment must withstand harsh conditions: extreme temperatures, high humidity and continuous operation. This rectifier is engineered with:
- Heavy-duty construction for daily use in maintenance hangars and on the ramp, lower Ripple, and higher volt stability in load and line regulation;
- Over-voltage and reverse polarity protection to safeguard aircraft systems;
- Quiet, all-electric operation – no fumes, suitable for indoor hangar use.

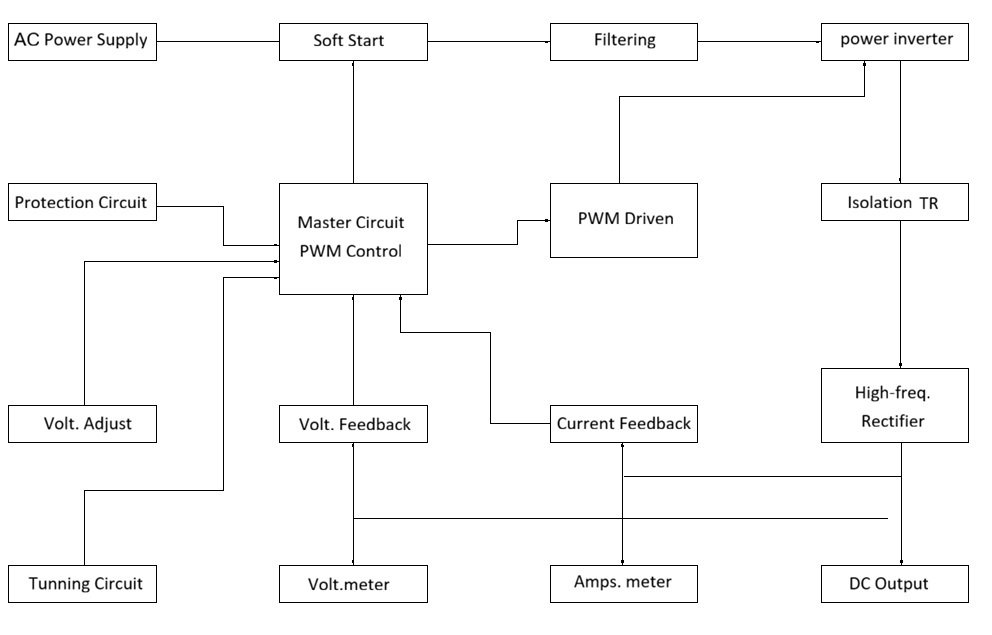

Diagram Block of DC Rectifier
Why Choose a Dual-Mode DC Rectifier?
One rectifier does the work of two or more separate units, reducing equipment costs, maintenance overhead, and hangar space requirements.
| Requirement | Traditional GPU | 48kW Dual-Mode Rectifier |
| 28.5V continuous power | ✓ | ✓ |
| 24V/48V starting power | ✗ | ✓ |
| 1500A starting current | Some | ✓ |
| Soft-start protection | Some | ✓ |
| Dual aircraft compatibility | ✗ | ✓ |
| Series 24V→48V conversion | ✗ | ✓ |
The 48kW Dual-Mode DC Rectifier represents the next generation of aircraft ground power technology. Its ability to deliver both 28.5V DC continuous power and switchable 24V/48V starting power in a single, rugged package makes it the ideal choice for:
✅ MRO facilities servicing mixed aircraft fleets
✅ Regional airlines seeking operational efficiency
✅ Helicopter operators needing reliable start power
✅ Military aviation support operations
With 1000A rated current, 1500A peak capability, and dual-mode flexibility, this rectifier ensures your aviation application reliably—every time.
